自立式压力调节阀 V230Y一01(02)

自立式压力调节阀 V230Y一01(02)

编辑日期:2013/12/17 9:38:00      点击:
  • 产       地:上海
  • 型       号:V230Y一01(02)
  • 公称压力:1.6MPa~4.0MPa
  • 公称通径:DN20~DN300
  • 适用介质:/
  • 适用温度:≦350℃
产品介绍

  一、产品概述

  该阀由阀体、阀座、阀芯部件等组成,是一种无需外来能源而只依靠被控介质自身的压力变化进行自动调节压力的节能型产品,可用于非腐蚀性的液体、气体和蒸气等介质的压力控制装置。广泛用于石油、化工、冶金、轻工等工业部门及城市供热.供暖系统。

The valve is made up of body, valve seat, and valve core ect,which can adjust pressure automatically.And the valve can save the energy because it does not need extra energy just by the mutation pressure of controlled medium itself. It is applicable to pressure control devices medium of which are non-erosive liquid, gas,and vapour.

The valve is applied to heating system in city and the field of petroleum, chemistry, metal lurgy,light industrial.

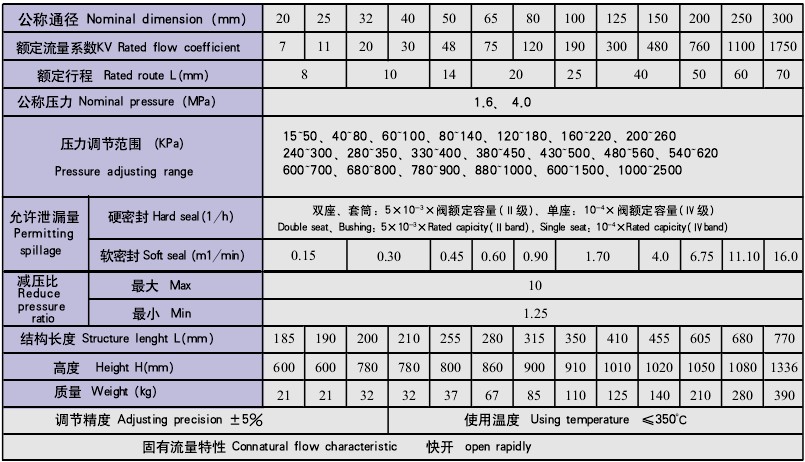

  二、主要技术参数

自立式压力调节阀 V230Y一01(02)

  三、主要零部件材料

阀体Body


WCB.  ZGICrl 8Ni9T1

ZGCrl 8Nil2M02T1



阀芯Valve core



1 Crl 8N19T1    Crl 8N112M02T1



阀座Valve seat



1 Crl aNi9T1      Crl aNii2M02Ti



阀杆Spindle



1Cr18N19T1.  Cr18N112M02T1



膜盖  Dissepiment cover



A3  lCr18N19Ti





填料Packing



聚四氟乙烯、柔性石墨



PTFE. Flexible graphite





膜片Dissepiment



丁腈橡胶、耐油橡胶、氟橡胶

NBR  Oil resistance

rubber. Fluororubber
