big size cast iron gate valve, rising stem
Edit Date: 2013/12/6 View:
- Brand: feiqiu
- Standards: BS5163, BS5150, EN1171
- Class: 0.6Mpa~1.6Mpa
- Size: DN700~DN1200
- Material: Cast iron
- Medium: /
Introduction
OUTSIDE SCREW,RISING STEM
| size range: | DN50-DN1200 |
| pressure rating: | 0.6Mpa-1.6Mpa |
| Design standard: | BS5163/BS5150/EN1171 |
| face to face: | BS5163/En558-1 basic serie 3 |
| flange end: | BS4504/EN1092-2 PN10/16,ANSI 16.1&16.5 125/150 |
| Inspection: | BS6755/EN12266-1 |
| Operation: | handwheel/ manual gearbox/ electric actuators |
| Body/Bonnet/wedge: | Cast iron(BS1452 220,ASTM A126 Class B,GG25,EN-GJL200,etc) |
| Ductile iron(EN-GJS-400,GGG40,ASTM A536-40-18,etc) | |
| Seat ring | Brass/Bronze/Stainless steel |
| Stem: | 2Cr13/SS431/SS316 |
| Body/Bonnet/wedge: | Cast iron(BS1452 220,ASTM A126 Class B,GG25,EN-GJL200,etc) |
| Ductile iron(EN-GJS-400,GGG40,ASTM A536-40-18,etc) | |
| Seat ring | Brass/Bronze/Stainless steel |
| Stem: | 2Cr13/SS431/SS316 |

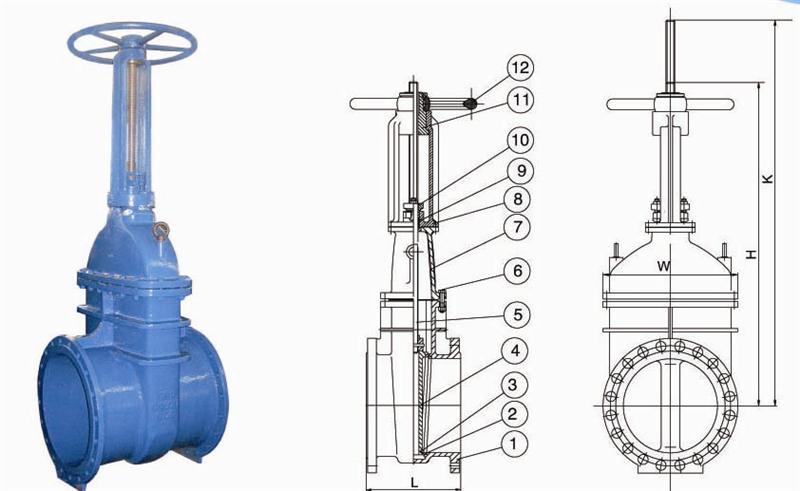

Dimensions(mm)
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| W | 158 | 180 | 202 | 225 | 248 | 292 | 282 | 434 | 504 | 550 | 610 | 670 | 730 | 850 |
| H | 224 | 265 | 300 | 354 | 415 | 466 | 580 | 700 | 802 | 897 | 945 | 1080 | 1180 | 1420 |
| K | 276 | 336 | 390 | 464 | 550 | 628 | 790 | 960 | 1122 | 1272 | 1355 | 1543 | 1700 | 2040 |

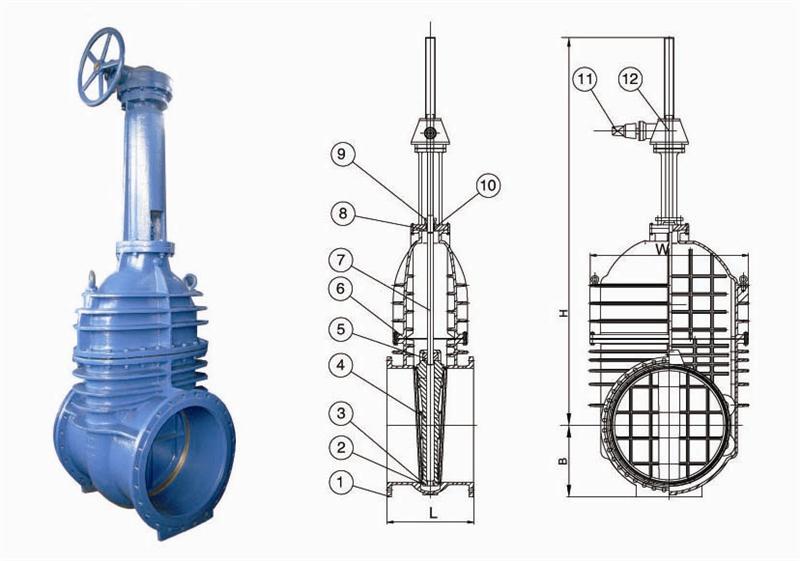

| DN | 700 | 800 | 900 | 1000 | 1200 |
| L | 610 | 660 | 711 | 813 | 960 |
| W | 1100 | 1180 | 1300 | 1400 | 1620 |
| H | 3224 | 3706 | 3950 | 4160 | 4720 |
| B | 460 | 524 | 580 | 630 | 730 |
