wafer type rubber lined butterfly valve

Edit Date: 2014/1/16 View:

Brand: feiqiu
Standards: API 6D, API 607, ASME B16.34, ANSI B16.5
Class: 1.0MPa~1.6MPa
Size: DN50-DN1200
Material: Ductile iron , cast iron
Medium: Service: water, oil, etc.

Introduction

1. Wafer type rubber lined butterfly valve body is rubber lined internally , the disc adopts anticorrosive material such as chrome plated ductile cast iron,stainless steel ,copper alloy etc,therefore the wafer type rubber lined butterfly valve can resist corrosion .

2. Wafer type rubber lined butterfly valve has centric structure,bi-directional seal , which can be assembled in either direction , not limited by direction of the medium flow .

3. Wafer type rubber lined butterfly valve is wafer type ,short size,small volume, light weight and space-saving .

4. Wafer type rubber lined butterfly valve adopts sectional axis design , thin disc , low flow resistance .

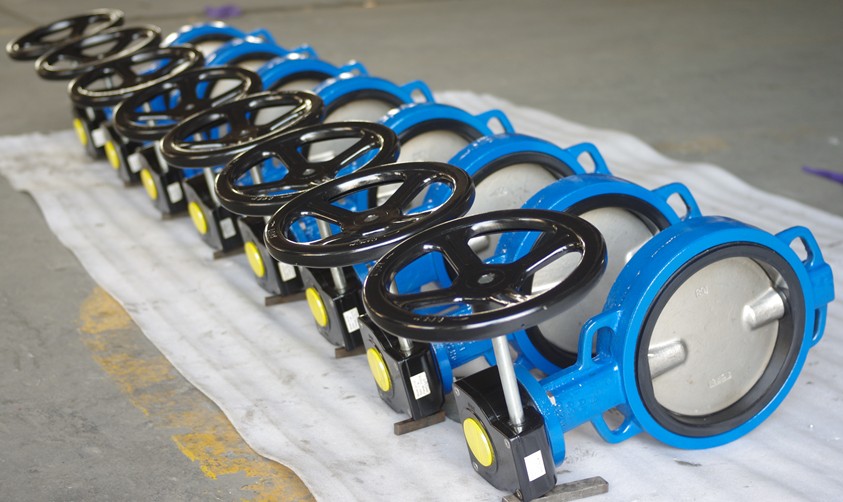

wafer type rubber lined butterfly valve

Materials for Main Parts

No.	Part	Material
1	Body	Ductile iron , cast iron ,cast steel,stainless steel
2	Disc	Ductile iron , cast iron ,cast steel,stainless steel
3	Seat	NBR,EPDM,VITION,PTFE
4	Stem	stainless steel
5	O-Ring	NBR,EPDM,VITION

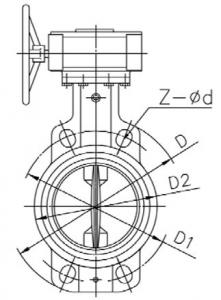

Main Connection Dimensions

DN	PN	L	D1	D	Z-d	H	D371/3 Type
(mm)	(MPa)	L	D1	D	Z-d	H	H0	L1	L2
50	1.0/1.6	43	125	100	4-18	112	270	200	130
65		46	145	120	4-18	115	290	200	130
80		49	160	135	4-18/8-18	120	355	200	130
10		56	180	155	8-18	140	425	220	155
125		64	210	185	8-18	165	460	220	155
150		70	240	210	8-23	180	503	220	155
200		71	295	265	8-23/12-23	210	616	220	155
250		76	350/355	320	12-23/12-25	245	690	220	155
300		83	400/410	370	12-23/12-25	285	830	260	260
350		92	460/470	433	16-23/16-25	315	940	260	260
400		105	515/525	485	16-25/16-30	335	975	385	260
450		114	565/585	535/550	20-25/20-30	380	1040	400	265
500		127	620/650	590/610	20-30/20-37	415	1105	400	265
600		154	725/770	670/720	24-30/24-37	475	1370	490	280
700		165	840	805	24-34/24-41	555	1525	504	380
800		190	950	913	28-34/28-41	640	1670	504	380
900		203	1050	1013	28-34/28-41	720	1910	632	470
1000		246	1160/1170	1122	28-34/28-45	770	2070	720	490
1200		254	1380/1390	1335	32-41/32-51	890	22315	720	490
