Forged steel cryogenic globe valve 800LB

Forged steel cryogenic globe valve 800LB, Forged Steel,Outside Screw and Yoke,

Integral Backseat,Sprial Wound Gasket,Full Port, T-Pattern or Y-Pattern, Socket Welded, Threaded,Butt Welded,Flanged End.

Application Standard:
API 602、ASME B16.34、BS 5352
Testing according to API 598
Marking to MSS SP25
Socket Welded Ends to ASME B16.11
Screwed Ends to ASME B16.11
Butt Welded Ends to ASME B16.25
Flanged Ends to ASME B16.5

Sandard Material Speciffcation

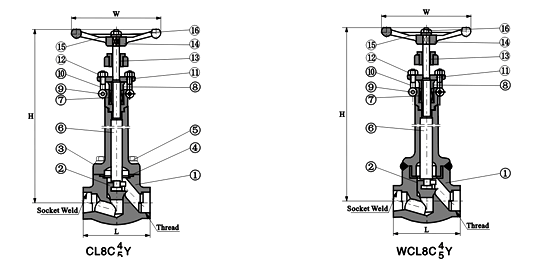

NO.	Part Name	AS to ASTM		SS to ASTM
		Type A350 LF2	Type A350 LF3	Type A182 F304	Type A182 F316(L)
1	Body	A350 LF2	A350 LF3	A182 F304(L)	A182 F316(L)
2	Disc	A276 420	A276 304(L)	A276 304(L)	A276 316(L)
3	Bonnet	A350 LF2	A350 LF3	A182 F304(L)	A182 F316(L)
4	Gasket	Corrugated SS+Graphite		SS+PTFE
5	Bolt Nut	A193 B7	A193 B7	A193 B8	A193 B8M
6	Stem	A182 F6	A182 F6	A182 F304(L)	A182 F316(L)
7	Stem Packing	Flexible Graphite		PTFE
8	Gland	A276 420		A182 F304
9	Pin	A276 420		A182 F304
10	Gland Eyebolt	A193 B7	A193 B16	A193 B8	A193 B8M
11	Gland Flange	A216 WCB		A351 CFB
12	Gland Nut	A194 2H	A194 4	A194 8	A194 8M
13	Yoke Nut	A276 410
14	Handwheel	A197
15	Nameplate	SS
16	H.W.Nut	A194 2H	A194 4	A194 8	A194 8M
		A197
Suitable Medium		W.O.G.etc	W.O.G.etc	HNO 3 ,CH 3 OOH etc
Suitable Temperature		≥-40℃	≥-101℃	≥-196℃

Note:Other materials are available upon request.   CS=Carbon Steel;AS=S=Alloy Steel;SS=Stainless Steel;

Dimension (mm) and Weight (Kg)

NPS		3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
L		79	92	111	120	120	172	200
H(OPEN)		333	337	370	480	410	474	546
W		100	100	125	160	160	180	200
Weight	Bolted	5.2	7.2	10.9	13.5	15.2	19.8	29.0
	Welded	4.8	6.5	9.5	11.5	13.1	17.5	26.8
